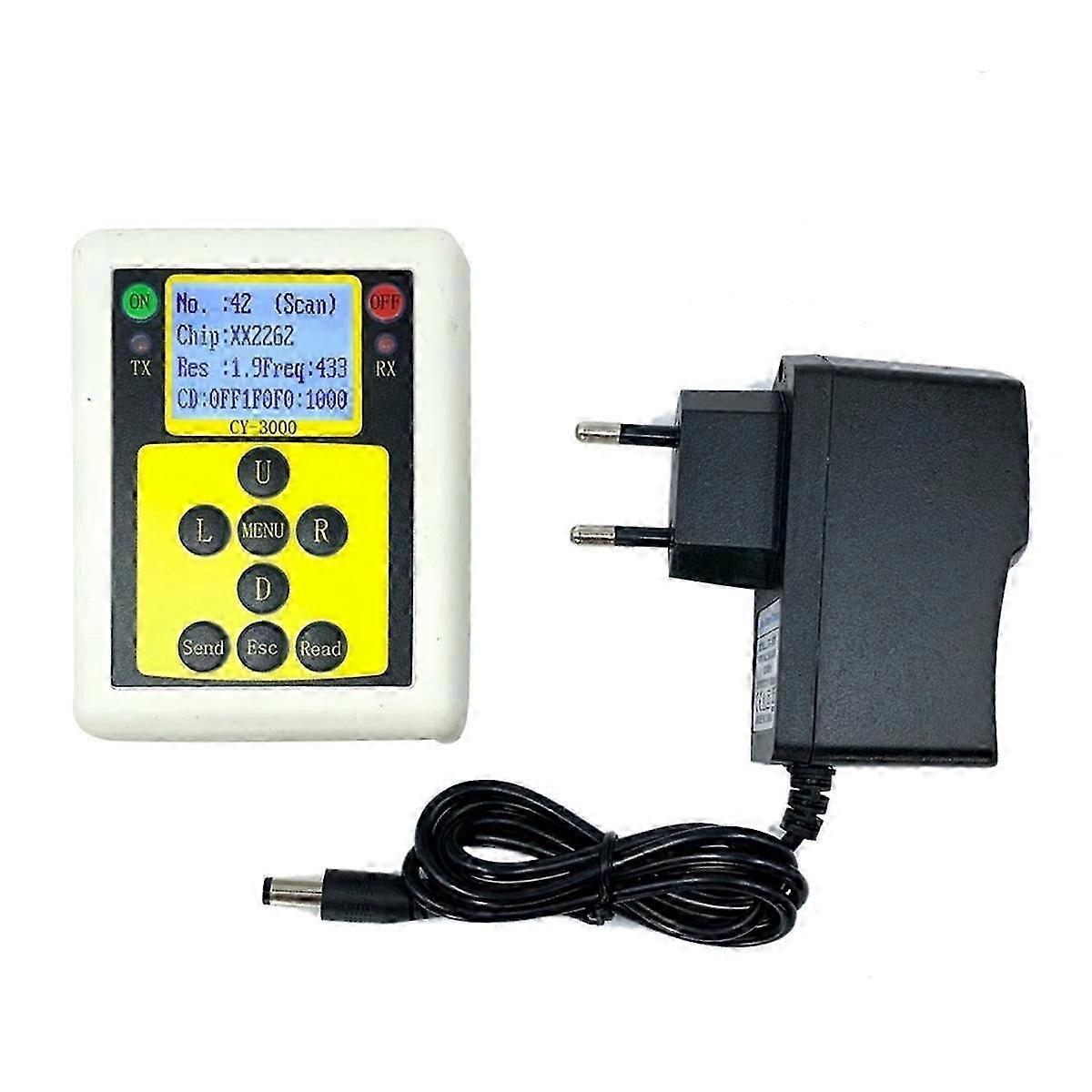

<p>The use of high-speed microprocessor chips with higher computing speed and larger capacity allows the entire system to achieve higher performance.It integrates professional-grade receiving modules with two standard frequencies of 315Mhz and 433Mhz, dual-band standby, and automatic and seamless switching.Receiving sensitivity: -110dbm, distance is 0-50 meters, but the specific distance also depends on the actual application conditions and environment.</p> <p>Transmitting power: 16dBm (40mW), distance is 0-50 meters, but the specific distance also depends on the actual application conditions and environment.Automatically identify the type of encoding chip for remote control equipment. There are two main types of encoding chips on the market: Fixed code: PT2262, PT2264, HX2262, LX2262, SC2260, SC2262, CS5211, Learning code: eV1527, SCL1527, PT2240, RT1527, FP527, HS527</p> <p>Automatically decode the frequency used by the remote control device and various related parameters of the encoding chip. (Including chip model, oscillation resistance value used, address code, data data).The collected data is automatically saved, and there is 50 sets of super-large capacity data recording space, and the data will not be lost even if the power is cut off.</p> <p>Added full data editing function. You can freely edit the types of supported chips and all parameters of the corresponding chips. This is equivalent to adjusting the machine to become a universal remote control for the supported chips, and the data above can be saved in the corresponding group number and can be adjusted at any time. Come out and use it.</p> <p>It retains the function of simply editing key data in the search state, which can realize three-state switching of key positions (.: 0, 1, F), and also adds the function of jog launch and long press launch that can the actual application of the remote control. Working mode (but this mode can only achieve two-state switching of key bits, namely: 0, 1,), thus allowing users to have more convenient applications.</p> <p>Added the function of locking\/unlocking the collected data, allowing users to have more convenient applications.</p> <p>Specifically for the characteristics of the XX2262 type of chip, the scanning function is integrated. This can be used to scan the code of the device paired with the XX2262 chip without a remote control.</p> <p> It integrates a shielding function and can shield wireless remote control signals of relevant frequencies within a range of 0-50 meters.</p> <p>Volume: 90x70x28mm, which makes it more convenient to carry.</p> <p>Built-in antenna, which can achieve higher receiving sensitivity and greater transmit power.</p> <p>parameter:</p> <p>Power supply: 2* lithium battery 400 mAh</p> <p>Standby current: 20mA</p> <p>Tested frequency range: 315M\/433M</p> <p>Transmit power: 16dBm (40mW)</p> <p>Receiving sensitivity: -110dbm</p> <p>Decoded chip type: fixed code: PT2262 and its compatible chips; learning code: eV1527 and its compatible chips</p> <p>Data storage: 50 groups</p> <p>Plug Type :EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on.</p> <p>Voltage: AC100-240V</p> <p>Colour:As Shown</p> <p>Material:plastic</p> <p>Package Contents:</p> <p>1 x Analyzer</p> <p>1 Adapter</p> <p>Only the above package content, other products are not included.</p> <p>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.</p>
