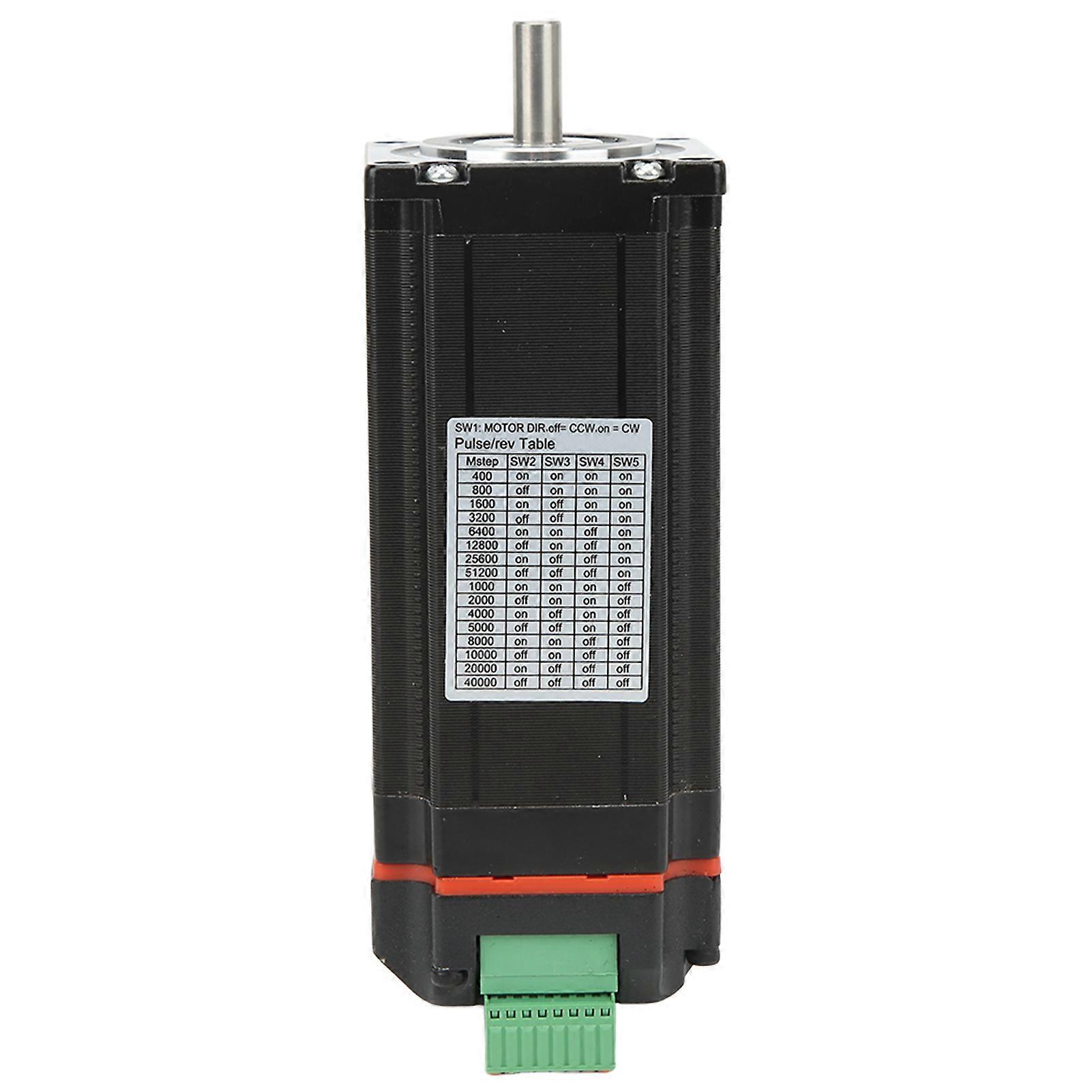

Item Type: Integrated Servo Motor Material: Aluminum Alloy Torsion: 3N.m Shaft Diameter: Approx. 8mm/0.3in Drive Parameter MinimumTypical Maximum Unit Input Voltage 20VDC 24VDC 48VDC V Output Current 0 3 4.2 A Step Signal Frequency 0 - 200K Hz Control Signal Input Current 7 10 16 mA Overvoltage Protection - 55 - VDC Input Signal Voltage - 5 - VDC Insulation Resistance 100 M Package List 1 x Integrated Servo Motor 1[Integrated Design] The integration of motor and driver saves complicated wiring and increases the installation space of motor. 2[High Efficiency] The motor could adjust the current in real time according to the actual load, reduce heating, has a torsion output capacity about 9%. 3[High Speed] The high speed performance of the hybrid servo drive system is more than 30% higher than that of open loop stepper motor, the effective torsion is increased to more than 70% of the holding torsion. 4[Low Frequency Resistant] The space vector current control algorithm and vector smoothing filter technology based on feedback encoder have a good resistance to the low frequency resonance. 5[Quick Response] Position response output and input instruction signal are almost synchronized in real time, the integrated servo motor is suitable for applications requiring rapid start and stop of end distance.
