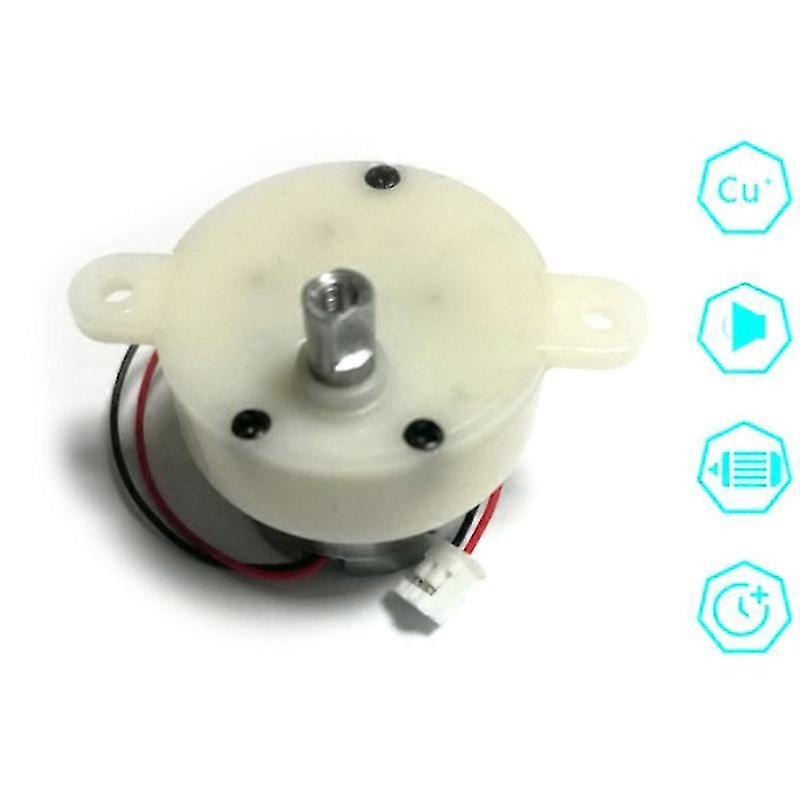

JS30 Micro Gear Motor DC 6V Plastic Gear Electric Motor 5RPM 100RPM Φ5mm D Shaft Reversible for Automation Equipment ● Product Properties : Motor Model : JS-30 Power Supply : DC 6V Shaft Diameter : 5mm Speed : 5RPM , 100RPM ● Motor characteristics : The plastic gear material is used, which is light in weight, low working noise, wear-resistant, and does not require lubrication. The rotation of the motor can be changed by changing the positive and negative terminals of the terminal wiring. The double flat holes are more convenient to install, not easy to slip, and save installation time. ● Motor use : JS-30 DC gear motor is suitable for all kinds of display stands, handicrafts, rotating lighting lamps, electric toys, small magic balls, etc. with a wide range of applications. Using DC power supply, the available voltage is DC1.5V-12V, and the speed can be 2-200R/ Min selection. ● Motor Considerations : 1. When you use the motor, there should be no binding objects. For example, the adhesive should not flow into the bearing through the rotating shaft, which will hinder the operation of the motor. 2. The rotation of the shaft may have the opposite effect on the life of the motor. In order to prolong the life, please check whether your load is in accordance with the regulations. Do not overload or have objects that hinder rotation at the end of the shaft. 3. Manufactured into an eccentric heavy radiation load, which is harmful to the life of the motor. 4. Do not store in surrounding high temperature or extreme humidity, and do not place in corrosive gas, which will reduce the effect of the motor. 5. Do not run the motor in the surrounding high temperature and humidity. 6. When soldering is required on the positive and negative motor terminals of the power supply, the temperature of the soldering iron is 340C±40C, and the heating time is within 3 seconds. Do not deform the plastic. Let the solder points flow into the motor or break the end of the wire during work, which will make the motor Functional decline. 7. Don't let the motor shaft get stuck. When power is supplied, the motor will overheat in a short time and its accessories will be burnt. 8. Due to the lack of skills of the staff, the quality of the motor cannot be guaranteed when the motor encounters the things mentioned in the manual, or the superficial judgment is obviously fault. 9. Supply the specified power and be sure that it is within the range of measurable requirements. 10. The installation of pulleys or gears should not be abnormally aggravated when they are pressed in. 11. When installing the motor, if the screw is too long, it will cause contact between the motor itself and the rotor, which will affect the characteristics. Note: Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement.
