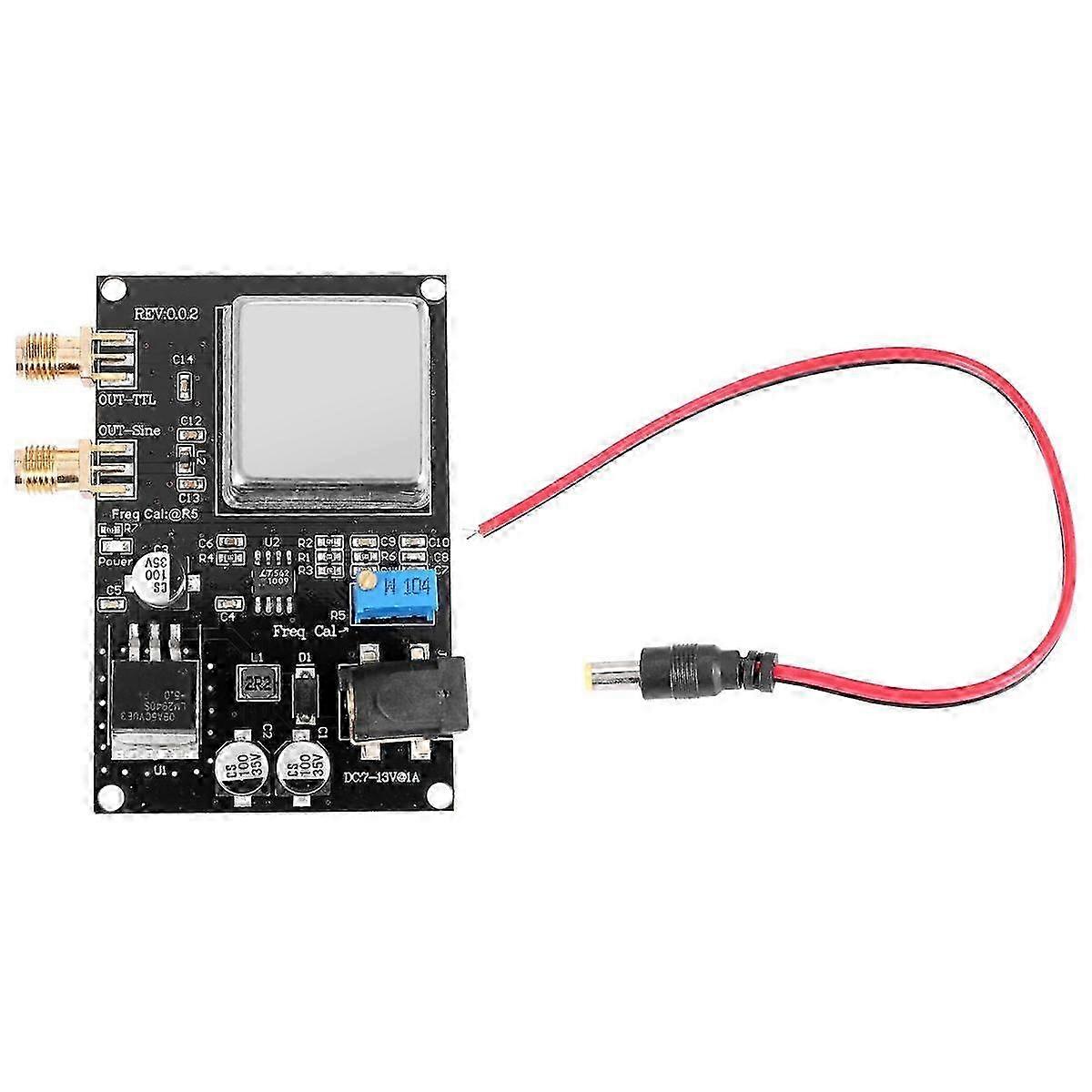

<p>Adopts premium electronic parts, with accuracy process, which ensures fine durability and long service time.</p> <p>Constant temperature 10MHz, ultra-low phase noise, low noise, portable and reliable.</p> <p>This product adopts 10MHz frequency standard, and which is provided by OCXO oven controlled crystal oscillator.</p> <p>Constant temperature crystal oscillator means that this product uses a constant temperature bath to keep the temperature of a crystal oscillator or a quartz crystal oscillator constant, so that the change in the output frequency of the oscillator caused by changes in the surrounding temperature is reduced to a minimum, which makes it has higher accuracy, 0.01Hz.</p> <p>Equipped with SMA outer screw inner hole interface. Wide applications, which can be used for instrument benchmarks such as audio systems, decoders, shortwave radios, frequency meters, signal sources, etc.</p> <p>Name: Frequency Reference Source</p> <p>Current consumption: preheating stage Less than 750mA, working stage Less than 300mA</p> <p>Warm-up time: 5 minutes</p> <p>Calibration accuracy: 0.01Hz</p> <p>Frequency stability: 5e-12</p> <p>Output level: dBm: 10dBm2dBm@50</p> <p>VRMS: 0.7071V@50</p> <p>VPeak: 1.0V@50</p> <p>-P: 2.0V@50</p> <p>Output impedance: 50</p> <p>Interface type: SMA outer screw inner hole</p> <p>Item size: 67 x 58 x 14mm \/ 2.64 x 2.28 x 0.55inch</p> <p>Item weight: 40g \/ 1.41ounce</p> <p>:ELECTRICAL</p> <p>Model Number:OCXO-10MHz</p> <p>color:Black</p> <p>Material:plastic</p> <p>Package Contents:</p> <p>1 x Frequency Reference Source</p> <p>1 x Cable</p> <p>Only the above package content, other products are not included.</p> <p>Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.</p>
