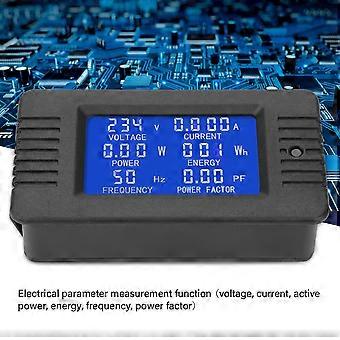

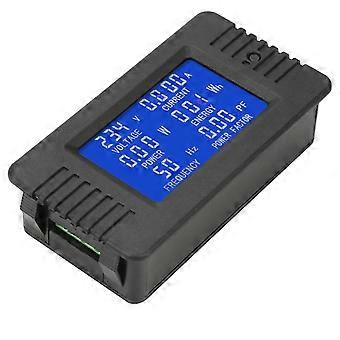

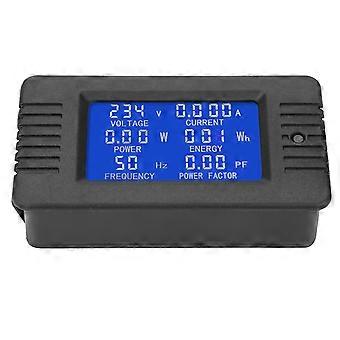

Features: <br>Electrical parameter measurement function (voltage, current, active power, energy, frequency, power factor) <br>Overload alarm function (over power alarm threshold, backlight and power flashing to alarm). <br>Power alarm threshold preset function (can set power alarm threshold). <br>The energy can be reset use the key. <br>Store data when power off. <br>Large-screen LCD <br>Backlight function. <br> <br> <br>Specification: <br> <br>Brand:PEACEFAIR <br> <br>Model:PZEM-020 <br> <br>Working voltage: 80 ~ 260VAC <br>Test voltage: 80 ~ 260VAC <br>Current: 10A <br> <br>Rated power:10A/2200W <br>Operating frequency: 45-65Hz <br>Measurement accuracy: 1.0 grade <br>Size: 9*5*2.5cm/3.5*2*1in <br>Weight: Approx.85g/3oz <br> <br> <br> <br>Package list: <br>1 * Digital Meter <br> <br> <br>Appearance and Key function <br>I.Display Interface <br>Display interface is large-screen LCD, it can display six parameters at the same time. <br>II.Display format <br>1. Power: test range: 0~2200W, Starting measure power: 0.2W <br>＜10W display format:1.00~9.99W <br>＜100W display format:10.0~99.9W <br>＜1000W display format:100~999W <br> ≥1000W display format:1.00~2.30kW <br>2. Energy: test range: 0~999kWh <br>＜1kWh display format:0~999Wh <br>＜10kWh display format:1.00~9.99kWh <br>≥10kWh display format: 10~999kWh <br>3. Voltage: test range: 80~260V <br>Display format: 80~260V <br>4. Current: test range: 0~10A,Starting measure current: 0.001A <br>Display format: 0.000~10.00 <br>5. Frequency: test range: 45~65Hz <br> Display format: 45~65Hz <br>6. Power factor: test range: 0~1PF <br> Display format: 0.00~1.00PF <br> Key functions <br> <br>1. Backlight control <br>Short press the key to turn on or off the backlight, the backlight has memory function, it can store the on or off state when power off. <br>2. Reset energy <br>Step1: Long press the key for 5 seconds until the energy value flash, then release the key. <br>Step2: Short press the key again, then the energy value is cleared and exit the reset flashing state. <br>Step3:If there is no operation on the key within 5 seconds, it means the energy value is not cleared and will exit the reset state. <br>3. Set power alarm threshold <br>Step1: Long press the key until the LCD screen display"SET CLr", then release the key to enter the setting state <br>Step2: Power window display the current power alarm value and the last digit begin to flash, then you can short press to plus 1, when there is no operating over 3 seconds, it will switch the digit position automatically, the setting method is as same as the above. <br>Step3: After finish the setting, long press the key over 5 seconds will store automatically and exit, the range of active power threshold is 0.0~2.5kW. <br> <br> <br>Note: <br>1. This module is suitable for indoor, please do not use outdoor. <br>2. Applied load should not exceed the rated power. <br>3. Wiring order can't be wrong.<br>1、Electrical parameter measurement function (voltage, current, active power, energy, frequency, power factor) <br>2、Overload alarm function (over power alarm threshold, backlight and power flashing to alarm). <br>3、Power alarm threshold preset function (can set power alarm threshold). <br>4、The energy can be reset use the key. <br>5、Store data when power off. Note: Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement.
